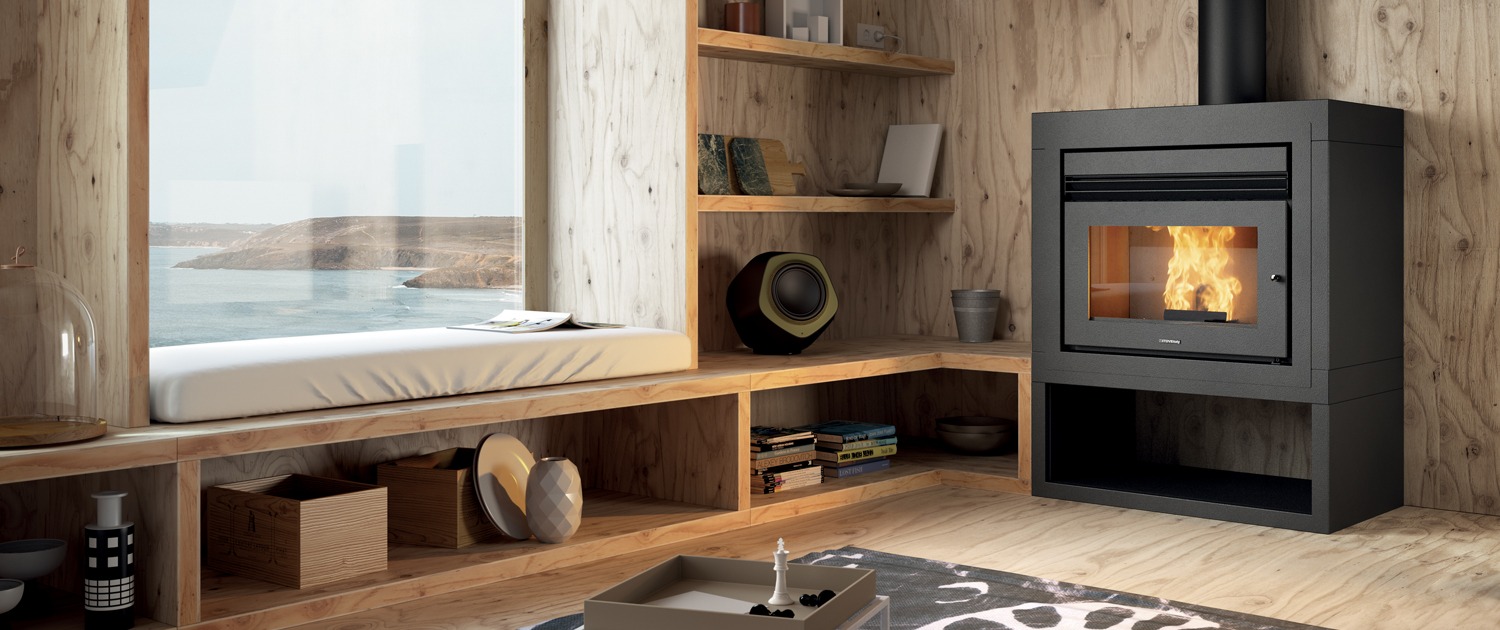

COKE / Gaio – 12,5 Kw
STANDARD VERSION
COKE / Gaio E – 12,5 Kw
ÈTANCHE VERSION
TECHNICAL DATA COKE / GAIO
| dimension H x Ø (mm) | 1177 X 930 X 570 |
| net weight (kg) | 211 |
| smoke exit pipe (Ø mm) | 80 |
| heatable volume (m³) | 310* |
| tank capacity (L) | 38 |
| pellet consumption – min / max (kg/h) | ~ 1,04 / 2,55 |
| power – in / out (kW) | 12,5 |
| efficiency – min / max (%) | 93 |
| energy label | A+ |
* Indicative value that varies according to the insulation of the building.
COKE / Gaio
Technical features
- Black painted steel body for high temperature
- Combustion chamber in special anti-corrosion steel
- Glass cleaning system
- Door with ceramic glass high temperature resistant (800°C)
- Thick steel brazier high temperature resistant
DARWIN SYSTEM
- DARWIN SYSTEM as a standard
- AUTO-OFF function to reduce consumption
- MULTIPELLET technology identifying pellet in use
- MINIMUM EMISSIONS CERTIFICATE
Standard
- OMNI SIDE flue exhaust
- Standard WI-FI, to program and control stove operation
- PELLET-LEVEL to check the level of pellets in the stove
Optional
- Predisposition for installations with PGI piping (optional)
- 2AIR additional ventilation (optional)
- REMOTE SENSOR to control the temperature even from a distance (optional)
DIMENSIONS
QUALITY CERTIFICATES
