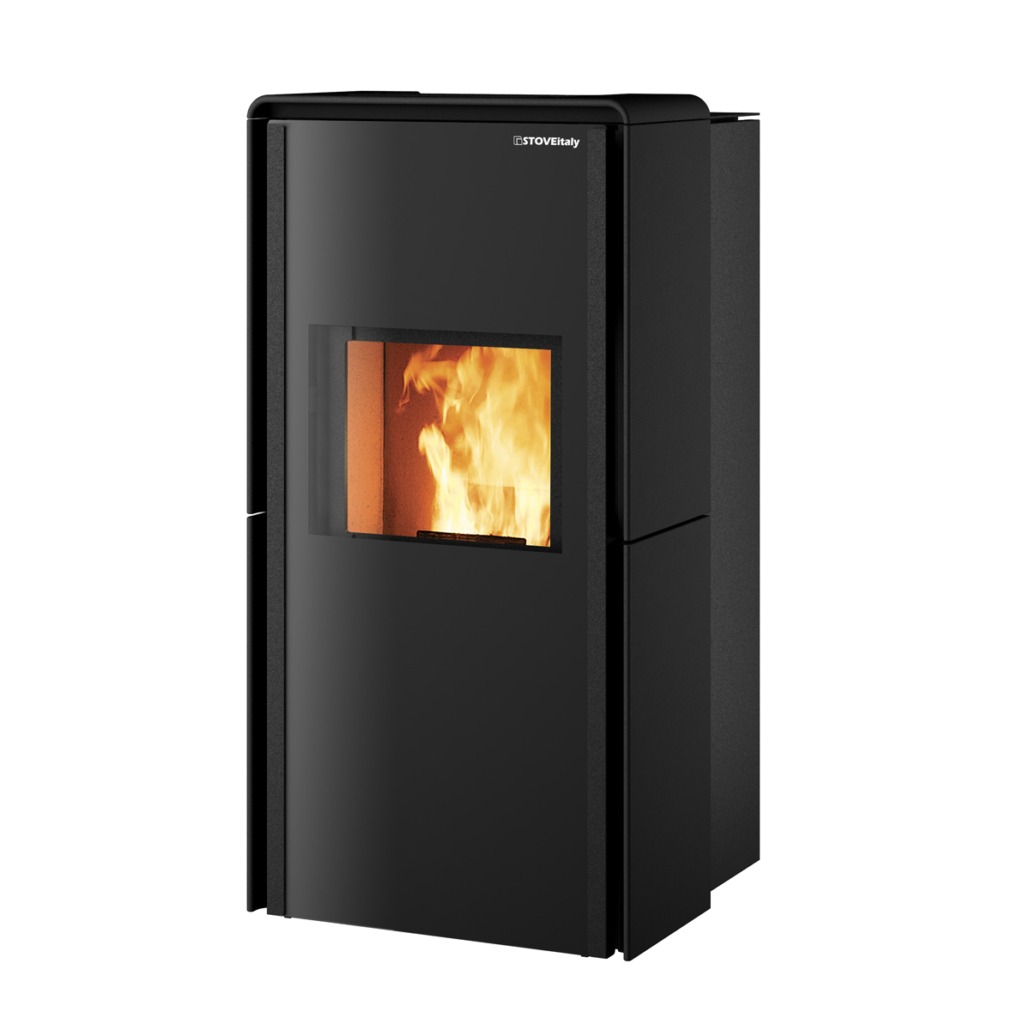

Arata – CERAMICA

ARATA
CERAMICA / CERAMIQUE / CERAMIC

Arata JR. – 6,3 Kw

STANDARD VERSION

Arata JR. E – 6,3 Kw

ÈTANCHE VERSION

TECHNICAL DATA ARATA JR.

The characteristics of the products contained in this catalogue are not binding and can be modified without notice to meet production needs or make improvements. Therefore, please contact our technical-sales office for confirmations and updates
dimension H x Ø (mm)	1035 x 524 X 535
net weight (kg)	131
smoke exit pipe (Ø mm)	80
heatable volume (m³)	160*
tank capacity (L)	35
pellet consumption – min / max (kg/h)	~ 0,79 / 1,29
power – in / out (kW)	6,3
efficiency – min / max (%)	94,2
energy label	A+

* Indicative value that varies according to the insulation of the building.

Arata – 10,7 Kw

STANDARD VERSION

Arata E – 10 Kw

ÈTANCHE VERSION

TECHNICAL DATA ARATA

The characteristics of the products contained in this catalogue are not binding and can be modified without notice to meet production needs or make improvements. Therefore, please contact our technical-sales office for confirmations and updates.
dimension H x Ø (mm)	1035 x 524 X 535
net weight (kg)	131
smoke exit pipe (Ø mm)	80
heatable volume (m³)	260*
tank capacity (L)	35
pellet consumption – min / max (kg/h)	~ 0,79 / 2,18
power – in / out (kW)	10,7
efficiency – min / max (%)	90,9
energy label	A+

* Indicative value that varies according to the insulation of the building.

Conto Termico

Grazie all’elevato rendimento e alle ridotte emissioni, questo apparecchio accede all’incentivo previsto dal Conto Termico.

Potete scaricare qui sotto la dichiarazione di conformità Conto Termico rilasciata dall’ente TÜV Rheinland Energy GmbH e visitare la pagina dell’incentivo per maggiori informazioni.

Dichiarazione di conformità Conto Termico n. K20812017T1

1 file(s) 328.19 KB

Download

Certificato Ambientale

Questo apparecchio garantisce elevate performance ambientali certificate a 4 stelle secondo i parametri di emissioni e rendimento previsti dal DM 186/2017.
Potete scaricare qui sotto il Certificato Ambientale rilasciato dall’ente TÜV Rheinland Energy GmbH.

Certificato Ambientale DM 186/2017 n. K20812018B2

1 file(s) 418.50 KB

Download

Arata

TECHNICAL FEATURES

Black painted steel body for high temperature
CERAMIC coating
Combustion chamber in special anti-corrosion steel
Glass cleaning system
Door with ceramic glass high temperature resistant (800°C)
Thick steel brazier high temperature resistant

DARWIN SYSTEM

DARWIN SYSTEM as a standard
AUTO-OFF function to reduce consumption
MULTIPELLET technology identifying pellet in use
MINIMUM EMISSIONS CERTIFICATE

Standard

OMNI SIDE flue exhaust
Standard WI-FI, to program and control stove operation
PELLET-LEVEL to check the level of pellets in the stove
Heating with RELAX CONTROL centrifugal fan
HYBRID SPLIT model with hot air outlet from both the upper and front minimal grill

Optional

Predisposition for installations with PGI piping (optional)
2AIR additional ventilation (optional)
REMOTE SENSOR to control the temperature even from a distance (optional)
