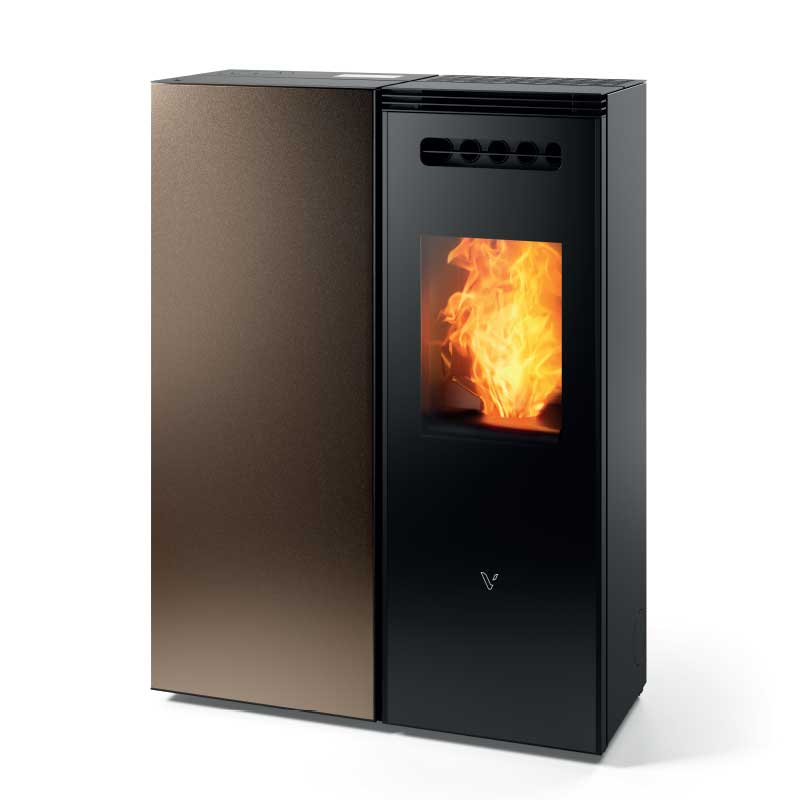

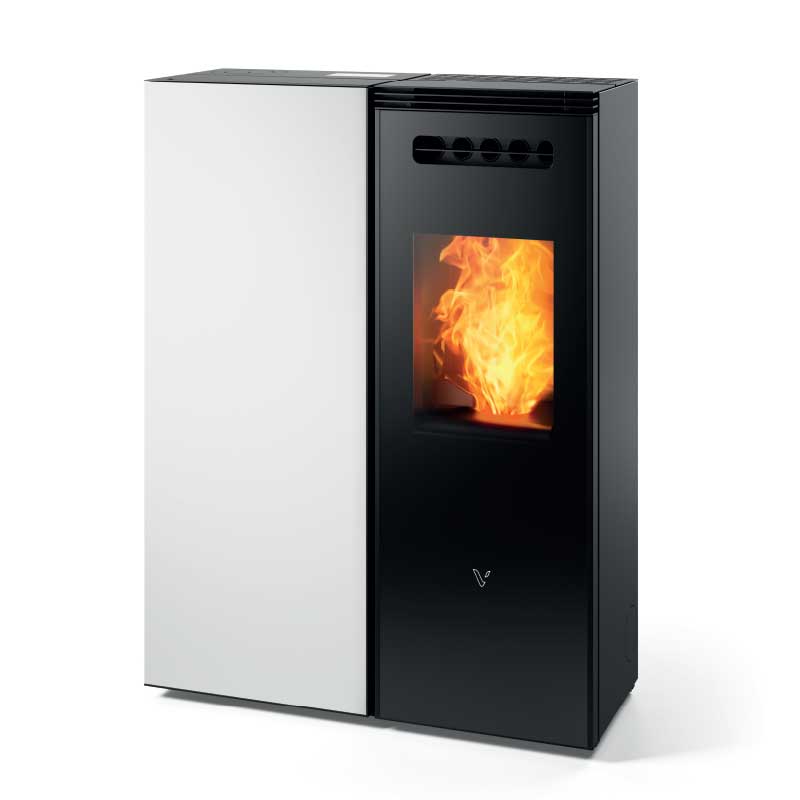

PYRA

  • PYRA EFEST

    PELLET STOVE

PYRA EFEST 9

PYRA EFEST 12

Caratteristiche tecniche

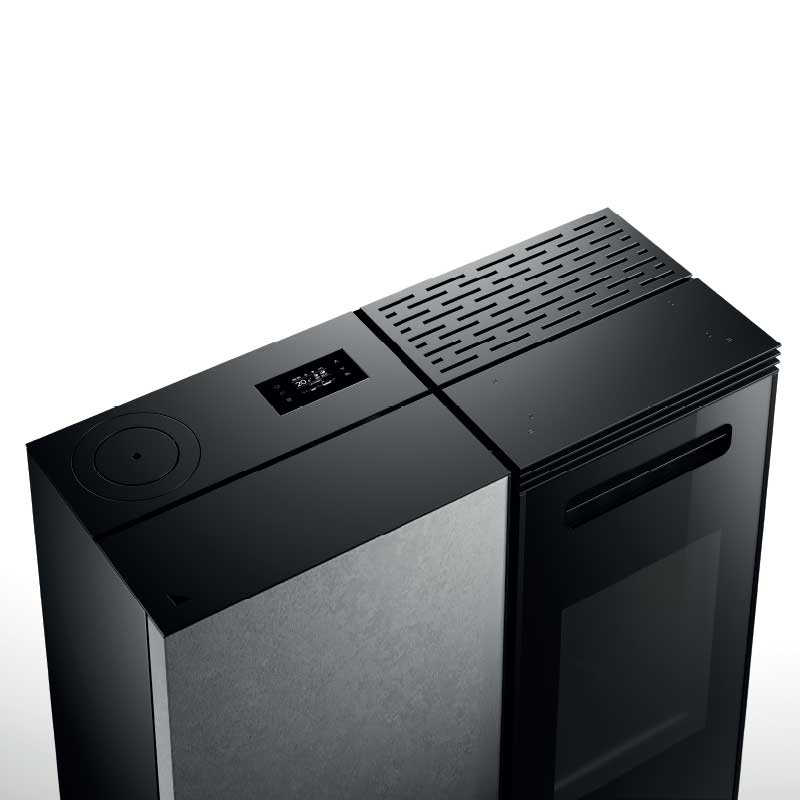

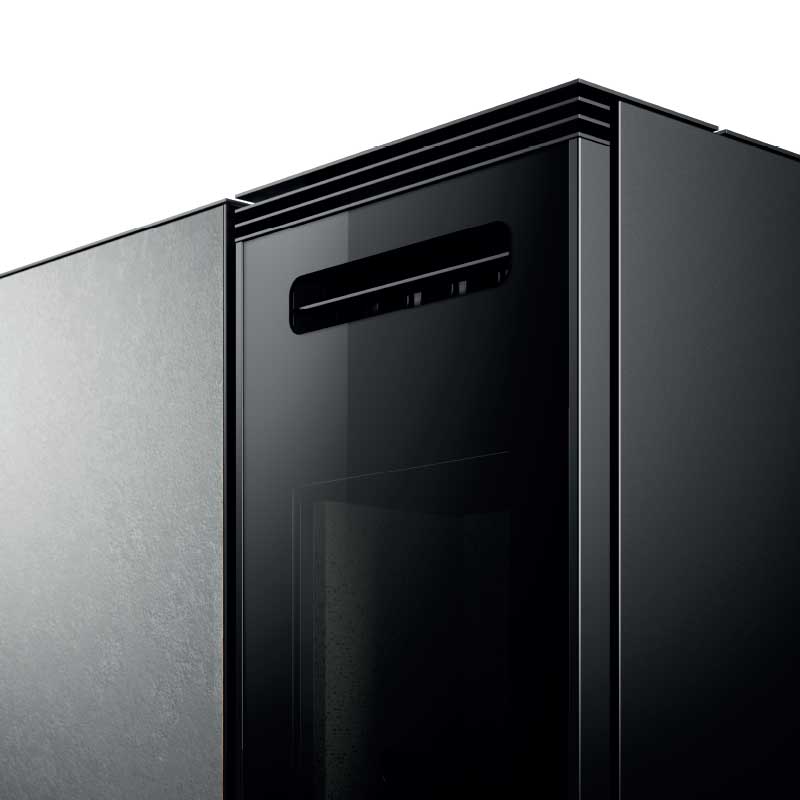

  • Top and base in steel.

  • Front in gres or stone.

  • Door in silk-screened glass.

  • Universal flue outlet in upper concentric version.

  • Front heating, lateral preparation or ducting.

  • Optional Bluetooth remote contro

CONFIGURAZIONE DI SERIE

  • PYRA EFEST 9 AIR OFF
  • PYRA EFEST 12 OMNI
  • DARWIN SYSTEM+ 2.0
  • WI-FI – MY VIVACE 2.0
  • AUTOMATIC or MANUAL MANAGEMENT
  • PELLET LEVEL meter
  • MULTIPELLET technology
  • HERMETIC configuration
  • CONCENTRIC duct configuration

The AIR OFF function, present in all the latest generation models, allows the appliance to be operated, if the user wishes, with the room fan turned off, with heat diffusion by radiation.

Create comfort as you desire
Omni is the system that allows you to choose the best heating solution with total autonomy.
All the stoves in the OMNI family are equipped with three independent fans, which allow you, if you wish, to direct hot air into other rooms, or to use them for rapid heating of the environment.
You can also enjoy the warmth with the silence of natural convection whenever you desire.
The VIP flame, self-cleaning brazier, and standard Wi-Fi make it unique in its kind.

Check the autonomy with one click allows you, both from the application and the display, to know at any time how many pellets are present in your tank, to better program the charge in order to optimize the use of your appliance.

Smart heat anywhere you are
User command management via Bluetooth and Wi-Fi through an application, following a simple and user-friendly pairing logic.

A second application dedicated to the installer allows for modifications and monitoring of operational status both via Bluetooth and remotely through an internet connection.

New homes and those of new concept with low environmental impact cannot have external air exchanges. For this type of environment, it is therefore necessary to choose sealed products, which use all the air necessary for combustion exclusively from the outside.

Intelligent system that regulates the air flow and guarantees, at all times and conditions, complete and reliable control of combustion through air sensors connected and parameterized on the control board, the necessary flow is introduced into the combustion to provide an optimal supply of oxygen for combustion. This results in greater efficiency, reduced harmful emissions, and better management of the combustion process.

The DARWIN + version is installed in the latest generation products equipped with a self-cleaning brazier “abc” system (advanced burner cleaner). In the intelligent combustion self-control and adjustment device, darwin now incorporates an internally developed self-cleaning brazier with dual action (abc system). The refinement allows to: lower unburnt matter almost to zero, this increasing efficiency; improve performance during combustion time; increase pellet savings.

EFEST is a system of technical solutions, born from our experience, capable of offering cutting-edge opportunities in terms of comfort, performance, and savings for the end user.

EFEST is not just an innovative combustion chamber, designed with a wide view of the flame and capable of ensuring high performance, while minimizing and facilitating maintenance and intervention times.

EFEST is also a system for:
• Automatic continuous ash cleaning;
• Gasification and pyrolysis combustion;
• Continuous combustion control;
• Remote connectivity and management for assistance;
• Quiet operation.

PYRA EFEST 9 – 9,4 – 3,4 KW

PYRA EFEST 12 – 11 – 3 KW

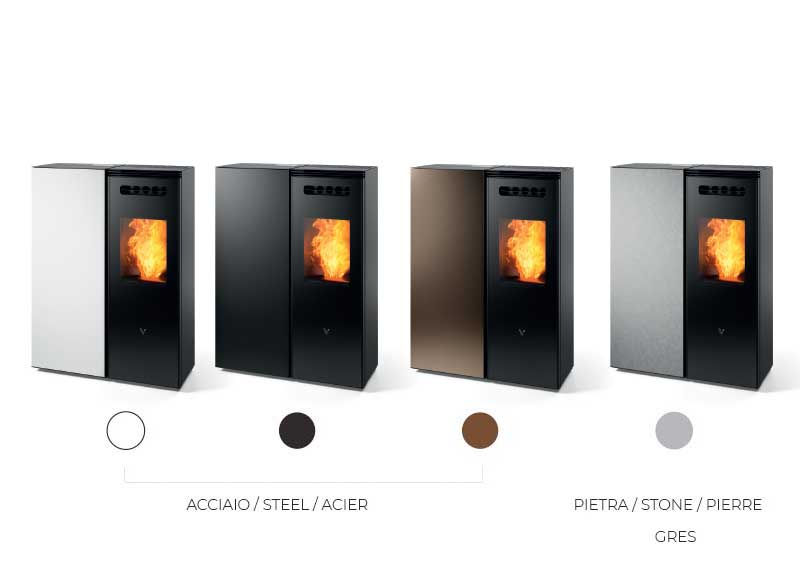

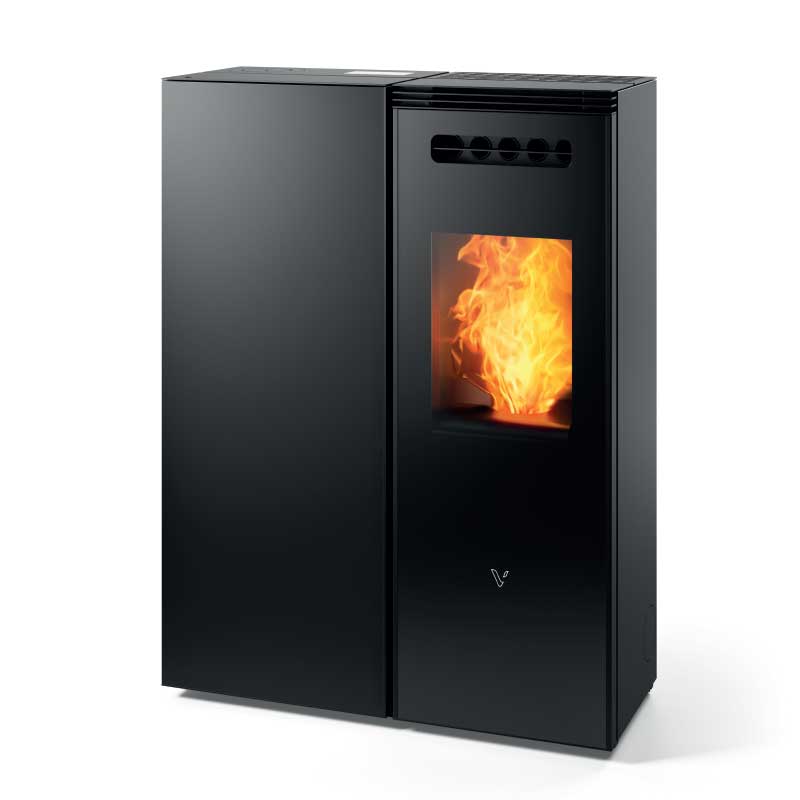

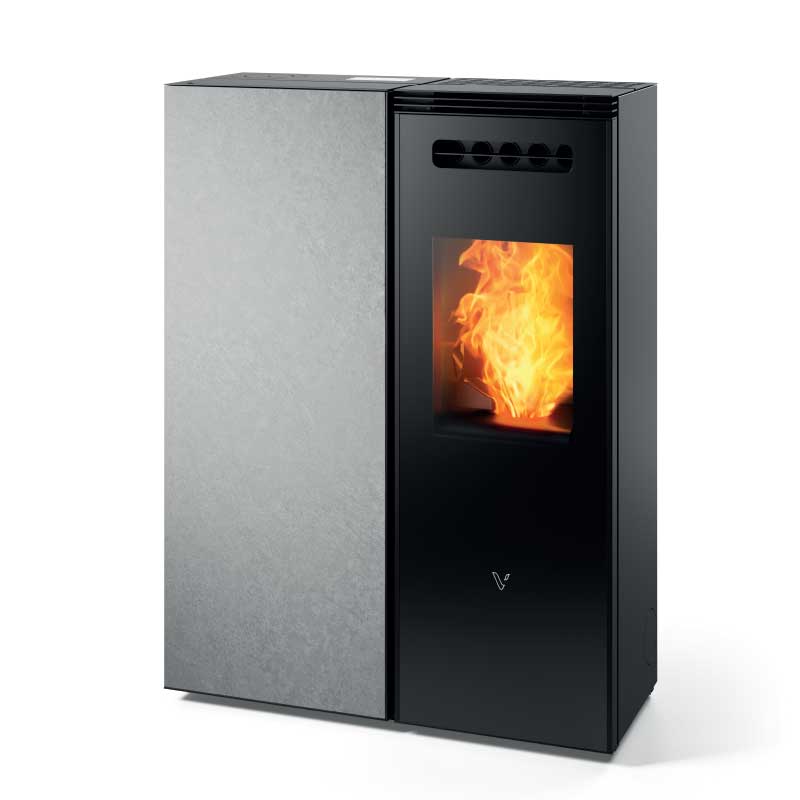

AVAILABLE COLORS

Quality certificates

PYRA EFEST 12 Technical data

The measurements and data shown are indicative. The parent company reserves the right to make any changes to its products, at any time and without notice, deemed appropriate for any technical or commercial need.

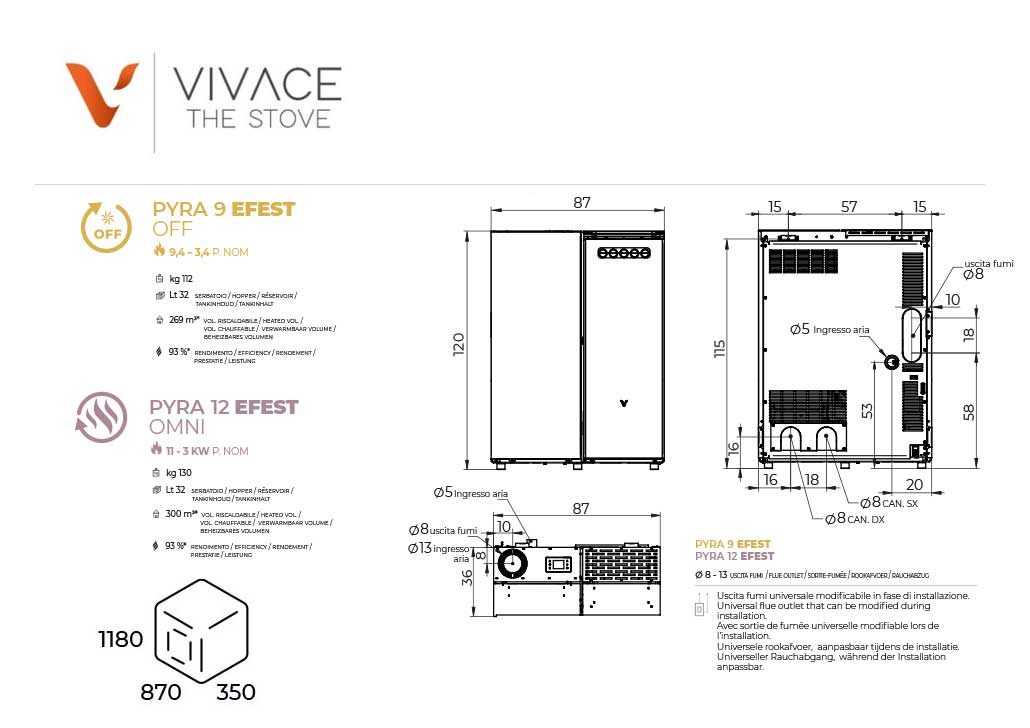

Dimensions H x B x P (mm)1180 X 870 X 350
Net weight (kg)112
Smoke outlet pipe (Ø mm)80 /130
Heatable volume (m³)269*
Tank capacity (L)32
Power – in / out (kW)9,4 – 3,4 KW
Yield – min / max (%)93*
Energy labelA+

*Indicative value and variable depending on the insulation of the building.

HEAT KIT / OPTIONAL PYRA EFEST 9

Kit canalizzazione / Ducting kit / Kit de conduits / Lüftungsset / Leidingenset

PYRA EFEST 12 Technical data

The measurements and data shown are indicative. The parent company reserves the right to make any changes to its products, at any time and without notice, deemed appropriate for any technical or commercial need.

Dimensions H x B x P (mm)1180 X 870 X 350
Net weight (kg)130
Smoke outlet pipe (Ø mm)80 /130
Heatable volume (m³)300*
Tank capacity (L)32
Power – in / out (kW)11 – 3 KW
Yield – min / max (%)93*
Energy labelA+

*Indicative value and variable depending on the insulation of the building.
