Natural stone may show significant variations in color, texture, veining, etc., associated with its natural origin.

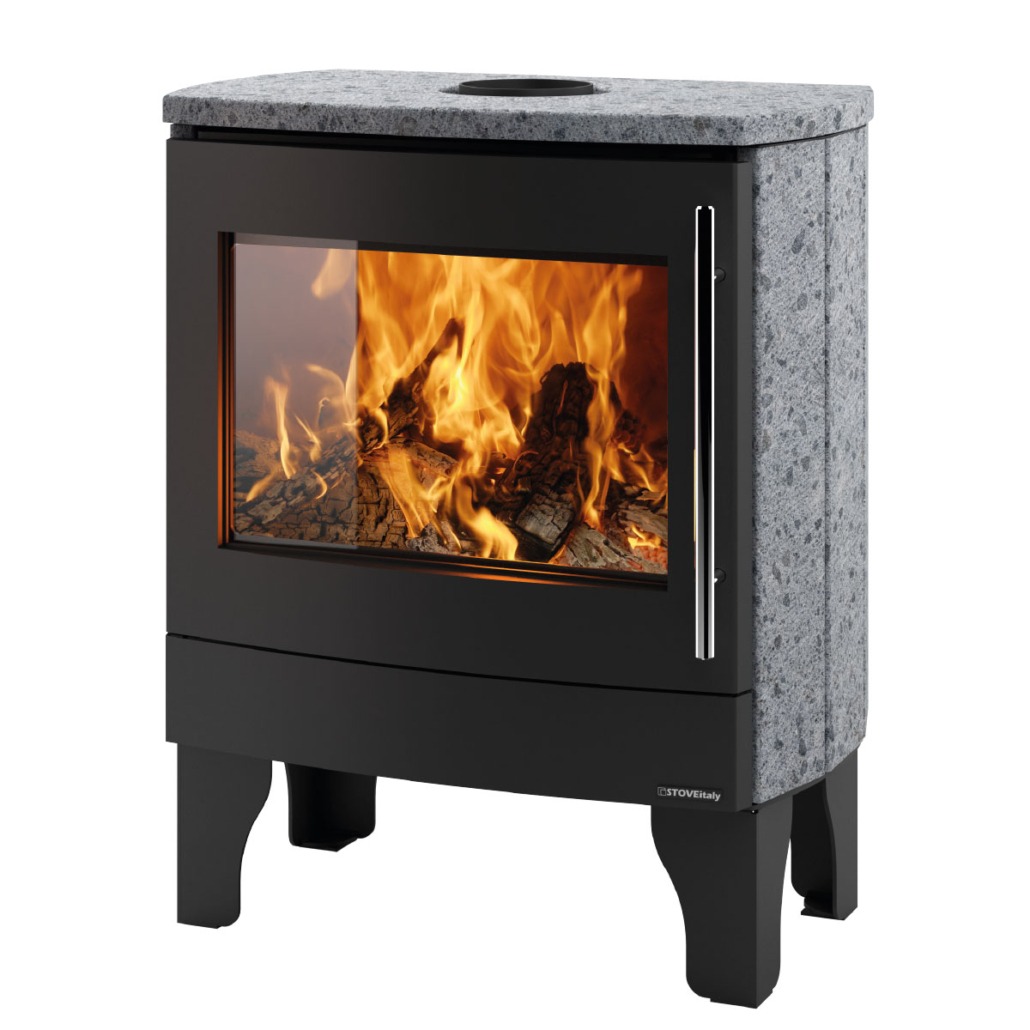

MORI4 PIERRE – 8,3 Kw

WOOD STOVE – IL500

MORI4 PIERRE’S TECHNICAL DATA

Following dimensions and technical details are approximate. The manufacturer may reserve its right to modify its appliances at any time and without prior notice for technical or commercial reasons.
dimensions H x L X P (mm)909 X 756 X 540
Net weight (kg)231
potenza nominale / rated power / puissance nominale / Leistung8,3 Kw
rendimento / rendement / efficiency85,2%
efficienza stagionale /efficacité énergétique saisonnière (ETAS) / seasonal energy efficiency75%
vol. riscaldabile (*) / vol. chauffable (*) / heated vol (*) 224 m3
POLVERI / PM18 mg/Nm3
OCG / COV69 mg/Nm3
NOX85 mg/Nm3
CO1061 mg/m3
larghezza camera di combustione / largeur foyer / firebox width / feuerraum breite50 cm
Energy labelA+

* Indicative and variable value according to the insulation of the building.

MORI4 PIERRE

WOOD STOVE – IL500

TECHNICAL DATA

  • Black painted steel structure for high temperatures
  • Special corrosion resistant steel combustion chamber
  • Glass cleaning system
  • Door with ceramic glass resistant to 800 C
  • High thickness fire resistant steel brazier

Optional

  • presa d’aria esterna connectable / à l’air extérieur options / external air intake

  • ventilatore ambiente / kit de ventilation options / vent kit

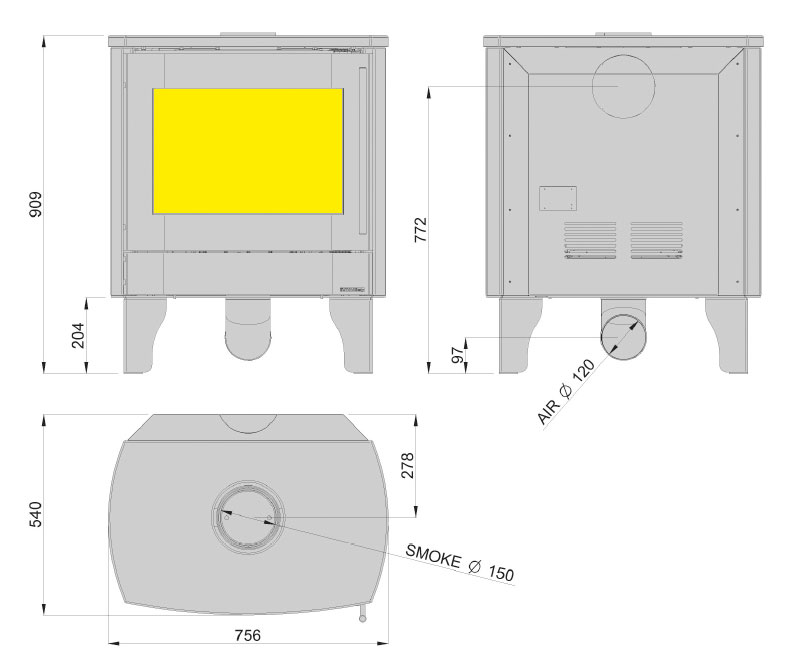

SIZE

QUALITY CERTIFICATES
